1603
Introduction: Covestro PC 1803 raw material is a product that can withstand temperatures up to 174°C and is resistant to high temperatures and UV rays. At the same time, Covestro PC 1803 is biocompatible and can be sterilized by ethylene oxide and steam.
Uses: auto headlamp shade，Automotive applications,automotive backlights,connector pieces for halogen system,indicator lights，lampshade，lighting applications.
Product Features
01
Transparency;
02
Good weather resistance;
03
high viscosity; UV stabilized
Product parameters
| TEST Items | Standard | Unit | Value |
| Density | ISO 1183 | kg/m³ | 1180 |
| Shrinkage Flow 60×60×2mm | ISO 294 | % | 0.75 |
| Shrinkage XFlow 60×60×2mm | ISO 294 | % | 0.75 |
| water Absorption 23℃ Saturation in water | ISO 62 | % | 0.3 |
| water Absorption 23℃ 50RH Equilibrium | ISO 62 | % | 0.12 |
| Melt Index 330℃ 2.16kg | ISO 1133 | cm³/10min | 25 |
| Melt Index 300℃ 1.2kg | ISO 1133 | g/10min | 26 |
| Ball indentation Hardness | ISO 2039 | N/mm² | 120 |
| Tensile Modulus 1.0mm/min | ISO 527 | Mpa | 2350 |
| Tensile Strength yield 50mm/min | ISO 527 | MPA | 68 |
| Elongation Yield 50mm/min | ISO 527 | % | 6.3 |
| Elongation Break 50mm/min | ISO 527 | % | 50 |
| Flexural Strength 2.0mm/min | ISO 178 | Mpa | 103 |
| Flexural Modulus 2.0mm/min | ISO 178 | Mpa | 2400 |
| Charpy Un-Notch impact 23℃ | ISO 179 | KJ/㎡ | NB |
| Charpy Un-Notch impact -30℃ | ISO 179 | KJ/㎡ | NB |
| Transmittance 1000㎛ | ISO 13468 | % | 89 |
| Refractive Index | ISO 489 | / | 1.578 |
| HDT 1.8Mpa | ISO 75 | ℃ | 137 |
| HDT 0.45Mpa | ISO 75 | ℃ | 150 |
| Vicat 120℃/hr 50N | ISO 306 | ℃ | 159 |
| CLE Flow 23－55℃ | ISO 11359 | m/m/K | 6.5E-5 |
| CLE xFlow 23－55℃ | ISO 11359 | m/m/K | 6.5E-5 |
Product applications
Products can be used in...
auto headlamp shade，Automotive applications,automotive backlights,connector pieces for halogen system,indicator lights，lampshade，lighting applications.

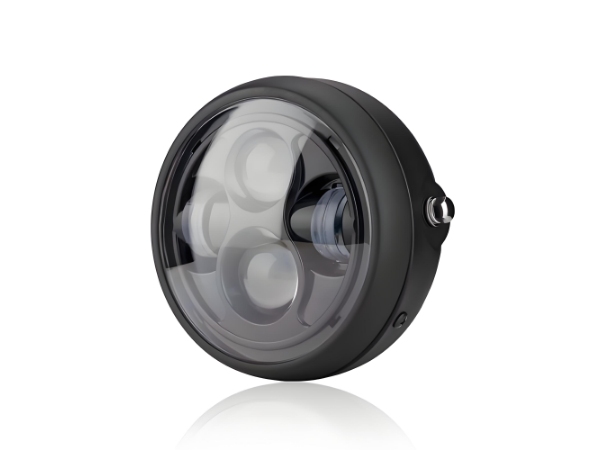

headlight lampshade

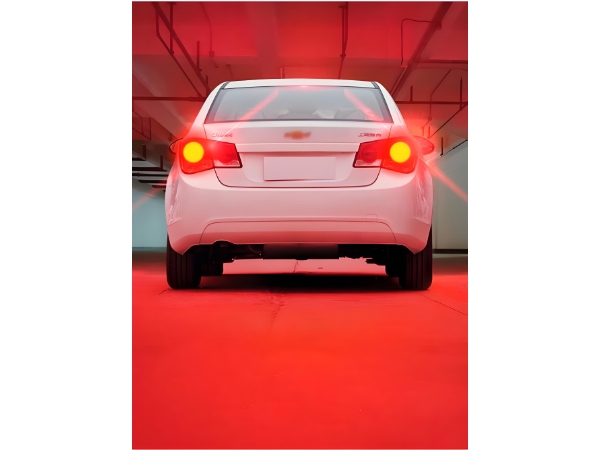

automotive backlight

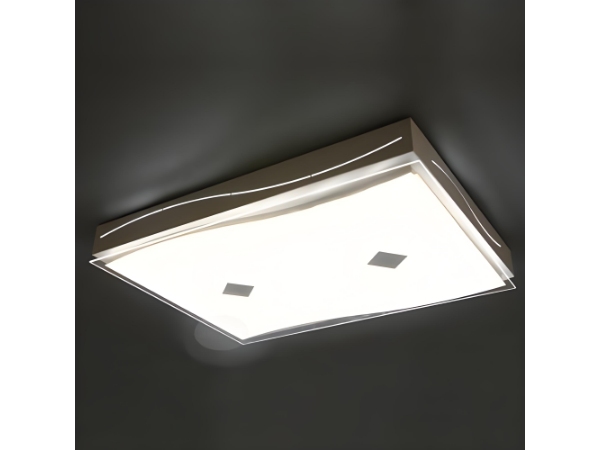

lampshade

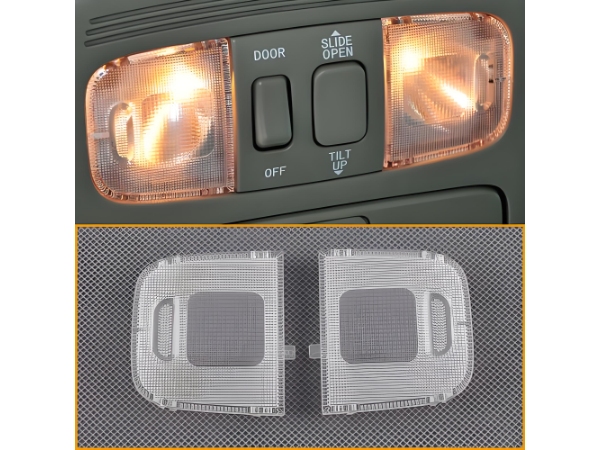

automotive interior lights
