263R
Introduction: LEXAN 263R is a medium viscosity multi purpose UV stabilized grade and contains release agent to ensure easy processing. This grade is UL94-V2 at 0.8 mm approved.
Introduction: LED lampshade
Product Features
01
V-2 flame retardant grade PC;
02
Anti-UV grade PC
03
Good processability, multifunctional grade
Product parameters
| TEST Items | Standard | unit | VALUE | / |
| Density | ISO 1183 | g/cm³ | 1.2 | |
| Shrinkage Flow | internal method | % | 0.5-0.7 | |
| Water absorption 23℃ saturated | ISO 62 | % | 0.35 | |
| Water absorption 23℃ 50RH | ISO 62 | % | 0.15 | |
| Melt index 300℃ 1.2KG | ISO 1133 | cm³/10min | 9 | |
| Ball Indentation Hardness | ISO 2039 | Mpa | 95 | |
| Tensile modulus 1.0mm/min | ISO 527 | MPa | 2350 | |
| Tensile strength Yield 50mm/min | ISO 527 | MPa | 63 | |
| Tensile strength break 50mm/min | ISO 527 | Mpa | 70 | |
| Elongation Yield 50mm/min | ISO 527 | % | 6 | |
| Elongation Break 50mm/min | ISO 527 | % | 120 | |
| Flexural Strength Yield 2.0mm/min | ISO 178 | Mpa | 90 | |
| Flexural Modulus 2.0mm/min | ISO 178 | Mpa | 2300 | |
| Izod Notch Impact 23℃ 3.0mm Type A | ISO 180 | kj/m² | 70 | |
| Izod Notch Impact -30℃ 3.0mm Type A | ISO 180 | kj/m² | 12 | |
| Charpy Notch Impact 23℃ 3.0mm 1eA | ISO 179 | kj/m² | 73 | |
| Charpy Notch Impact -30℃ 3.0mm 1eA | ISO 179 | kj/m² | 14 | |
| Charpy Notch Impact 23℃ | ISO 179 | kj/m² | 35 | |
| Tabor Wear CS-17 Wheel 1kg | Internal method | mg/1000cy | 10 | |
| Transmittance | ASTM D1003 | % | 88-90 | |
| Haze | ASTM D1003 | % | 0.8 | |
| Refractive Index | ISO 489 | / | 1.586 | |
| HDT 0.45Mpa 4.0mm | ISO 75 | ℃ | 138 | |
| HDT 1.8Mpa 3.2mm | ISO 75 | ℃ | 127 | |
| Vicat 50℃/hr 50N | ISO 306 | ℃ | 143 | |
| Vicat 120℃/hr 50N | ISO 306 | ℃ | 145 |
Product applications
Products can be used in...

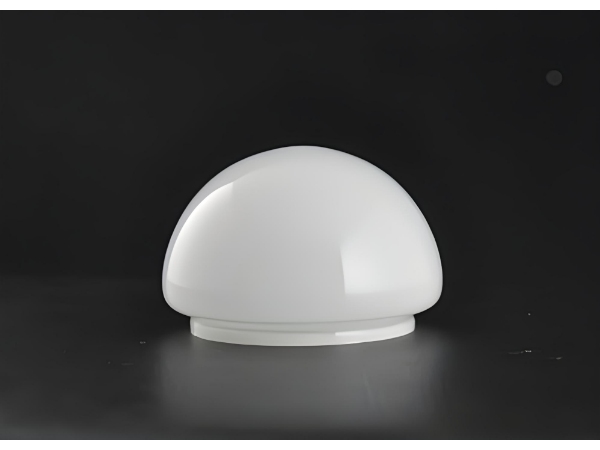

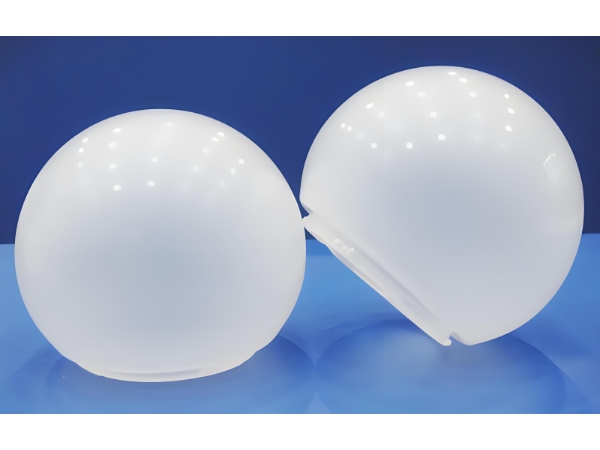

LED lampshade
lighting applications
lighting applications
lighting applications
lighting applications
