FR3040
Introduce: Bayblend® FR3040 by Covestro is a flame-retardant blend of polycarbonate and acrylonitrile butadiene styrene (PC+ABS). Exhibits a good balance of qualities, including rigidity, dimensional correctness and stability, great creep resistance, low moisture absorption, and high heat resistance, as well as excellent burning behavior. Paintability and flowability are excellent. Low emissions, excellent rigidity, easy processing, and great toughness even at low temperatures are all features of this material. Injection molding was used to create this product. Thin wall applications, electronics, IT & communication, automotive & transportation applications, lawn & garden equipment (riding mowers, hammer drills), and electrical applications are all recommended (connectors, cable ducts, other electro-technology products). Bayblend® FR3040 complies with UL 94 flame rating.
Uses: notebooks and thinwall applications
Product Features
01
(PC+ABS)-Blend;
02
flame retardant;
03
impact modified;
04
for notebooks and thinwall applications
Product parameters
| TEST Items | Standard | Unit | Value |
| Density | ISO 1183 | kg/m³ | 1190 |
| Shrinkage Flow 150×105×3mm 240℃ Mold Temperature 80℃ | ISO 2577 | % | 0.5-0.7 |
| Shrinkage xFlow 150×105×3mm 260℃ Mold Temperature 80℃ | ISO 2577 | % | 0.5-0.7 |
| Water Absorption 23℃ Saturation In Water | ISO 62 | % | 0.5 |
| Water Absorption 23℃ 50RH Equilibrium | ISO 62 | % | 0.2 |
| Melt Index 240℃ 5kg | ISO 1133 | cm³/10min | 17 |
| Melt Viscosity 260℃ 1000S¯¹ | ISO 11443 | Pa·S | 240 |
| Tensile Modulus 1.0mm/min | ISO 527 | Mpa | 2700 |
| Tensile Strength yield 50mm/min | ISO 527 | MPA | 65 |
| Tensile Strength Break 50mm/min | ISO 527 | Mpa | 50 |
| Elongation Yield 50mm/min | ISO 527 | % | 4 |
| Elongation Break 50mm/min | ISO 527 | % | 50 |
| Flexural Strength 2.0mm/min | ISO 178 | Mpa | 100 |
| Flexural Modulus 2.0mm/min | ISO 178 | Mpa | 2600 |
| IZOD Notch impact 23℃ | ISO 180 | KJ/㎡ | 30 |
| IZOD Un-notch impact 23℃ | ISO 180 | KJ/㎡ | NB |
| CTI Solution A | IEC 60112 | V | 325 |
| HDT 1.8Mpa | ISO 75 | ℃ | 91 |
| HDT 0.45Mpa | ISO 75 | ℃ | 100 |
| Vicat 50℃/hr 50N | ISO 306 | ℃ | 106 |
| Vicat 120℃/hr 50N | ISO 306 | ℃ | 108 |
| Flame Rating All Color 0.6mm | UL94 | / | V-1 |
| Flame Rating All Color 0.75mm | UL94 | / | V-0 |
| Flame Rating All Color 1.5mm | UL94 | / | V-0 5VB |
| Flame Rating All Color 3.0mm | UL94 | / | V-0 5VA |
| Limiting Oxygen Idex Method A | ISO 4589 | % | 35 |
Product applications
Products can be used in...
notebooks and thinwall applications
auto parts

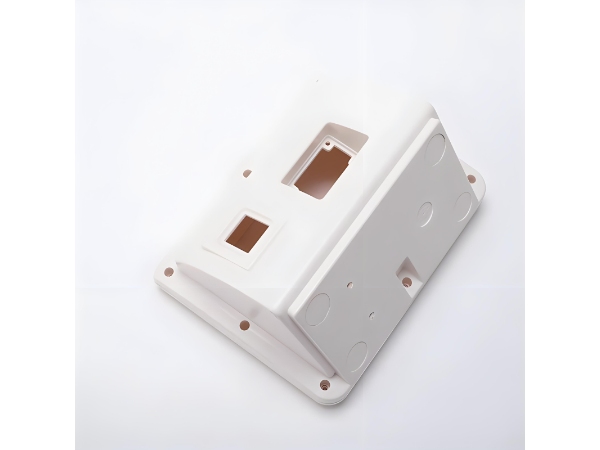

Electrical casing
Electrical casing
auto parts
