PBT GF4130

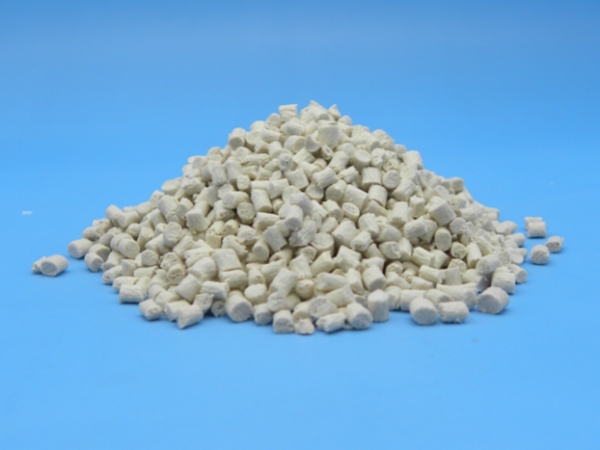

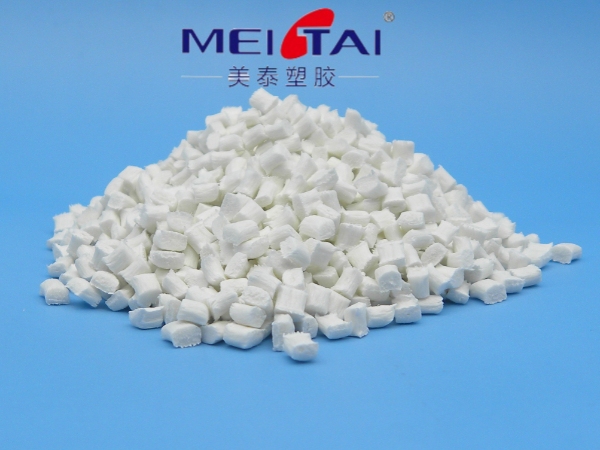

introduce MEITAI plastic glass fiber reinforced PBT materials produced can be added with different ratios of glass fibers such as 10-30% according to the demand, featuring low viscosity, good heat resistance, excellent overall performance, etc.
Application: automotive parts, coil bobbins, winding coils, motor end caps and other products
Product Features
01
Lower viscosity, superior overall performance;
02
Excellent temperature resistance, heat distortion temperature 180°C;
03
Dimensional stability, low warpage
Product parameters
| TEST Items | Standard | Test Condition | Unit | Value |
| density | GB/T 1033.1-2008 | 23℃ | g/cm³ | 1.5 |
| Notched impact strength | GB/T 1843-2008 | 23℃ | KJ/m² | 15 |
| tensile strength | GB/T 1040-2006 | 50mm/min | MPa | 125 |
| Elongation break | GB/T 1040-2006 | 50mm/min | % | 5 |
| bending strength | GB/T 9341-2008 | 2mm/min | MPa | 180 |
| bending modulus | GB/T 9341-2008 | 2mm/min | MPa | 7000 |
| Flame retardant grade | UL 94 | / | Class | / |
| heat distortion temperature | GB/T 1634.1-2004 | 1.8MPa 0.34mm | ℃ | 180 |
Product applications
Products can be used in...
automotive parts, coil bobbins, winding coils, motor end caps and other products
motor end caps
coil bobbins
Energy Saving Lamp Holder
relay (electronics)
Enterprise strengths
Resources Diversification
21 years of experience as import and export engineering plastic agent, with a full range of agent brands and more diverse options.
Comprehensive Customized Services
Industry and trade integration, 16 years of experience in modified plastic, pre-sales, sales and after sales technical support services.
Convenient Transportation
Close to natural harbor ---Qingdao port，makes more efficient the import and export operations.
Flexible Trading Methods
According to the commerce handbook “commerce manual + general trade ”, a variety of trade methods, bonded area warehouse with sufficient inventory.
Global Recognized Certifactions
Global Recognized Certifactions
If you require certificates in PDF format or complete datasheets, please contact us directly.
-
